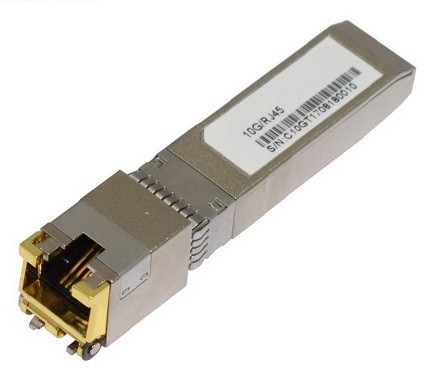

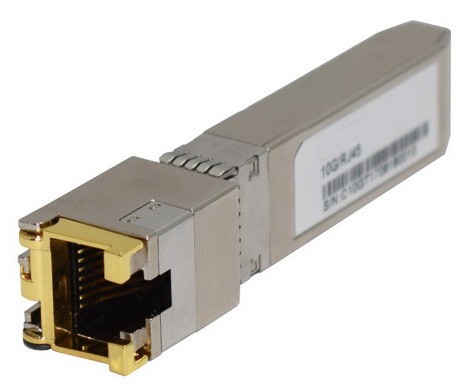

טרנסיבר +SFP (מיניג'ביק) ל-10G/5G/2.5G/1G BASE-T RJ45 תואם HP

 Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T

 Hot-pluggable SFP footprint

 Compact RJ-45 connector assembly

 RoHS compliant and lead-free

 Single +3.3V power supply

 10 Gigabit Ethernet over Cat 6a cable

 Ambient Operating temperature: 0°C to +70°C

Description:

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Cable Length:
